Tutorial To Simulate Isotropic Two Dimensional Harmonic Oscillator

Create simulation directory

First of all we need to create a specific directory to save this specific simulation results

@prompt:~$ mkdir ~/my_directory_path/QHO2D
@prompt:~$ cd ~/my_directory_path/QHO2D

Create function potential

We need to create a specific function potential for quantum harmonic oscillator 2D as following:

@prompt:~/my_directory_path/QHO2D$ vi adhoc_potential_function.jl

Inside adhoc_potential_function write the following:

export qho_2d
"""
    qho_2d(x,params)

# Aim:
    This function is a simple implementation of the 2D quantum harmonic oscillator
    potential.
    It is used to test the simulation of the isotropic quantum harmonic oscillator in 2D.

# Arguments
    x::Array{Float64,1} : The position of the particle in 2D.
    params::Tuple : A tuple containing the parameters of the potential.
        params[1]::Float64 : The frequency of the oscillator.
        params[2]::Float64 : The position of the minimum of the potential in the x
        direction.
        params[3]::Float64 : The position of the minimum of the potential in the y
        direction.
"""
function qho_2d(x,params::Tuple)
    ω,x₁,y₁=params
    return 0.5*(ω*ω)*((x[1]-x₁)*(x[1]-x₁)+(x[2]-y₁)*(x[2]-y₁))
end

Input file

We need to create an input file to simulate using default solver function inside FEMTISE package

@prompt:~/my_directory_path/QHO2D$ vi input.dat

Inside input.dat we need to write the following.

full_path_name              = ~/my_directory_path/QHO2D/name_output_file
dom_type                    = s
nev                         = 10
dimension                   = 2D
sigma                       = 0.0
adhoc_file_name             = ~/my_directory_path/QHO2D/adhoc_potential_function
potential_function_name     = qho_2d
params_potential_types      = f f f
params_potential            = 1.0 0.0 0.0
analysis_param              = false
output_format_type          = jld2 eigen
## ONLY FOR 1D EIGENPROBLEMS
L                           =
Δx                          =
## ONLY FOR 2D EIGENPROBLEMS
Lx                          = 10
Ly                          = 10
nx                          = 100
ny                          = 100
different_masses            = false
reduced_density             = false

Note that ~/my_path_repo/ is the directory path where we can find FEMTISE.jl package.

Run script

Create Julia code as

@prompt:~/my_directory_path/QHO2D$ vi run.jl

Inside run.jl we need to write the following.

begin
    using Pkg
    Pkg.activate("~/my_directory_path/QHO2D/")
    develop_package = true; develop_package ? Pkg.develop(path="~/my_path_repo/FEMTISE.jl") : nothing
    Pkg.instantiate()
    using FEMTISE;
    run_default_eigen_problem(set_type_potential("~/my_directory_path/QHO2D/input.dat"))
end

After this we can run the simulation using Julia compiler (for example: using multithread running with four threads)

@prompt:~/my_directory_path/QHO2D$ julia -t 4 run.jl

Analysis

After running we obtain an output data file in jld2 format called name_output_file_eigen_data.jld2.

Then using Jupyter Notebook (by intermediate Visual Studio Code) we can analyse output file so:

@prompt:~/my_directory_path/QHO2D$ code QHO2D.ipynb

Inside QHO2D.ipynb we need to write the following:

Environment

Activate Julia environment

using Pkg
Pkg.activate("~/my_directory_path/QHO2D/")
Pkg.instantiate()

Is necessary to mark FEMTISE package as developed package using specific path repository:

develop_package = true; develop_package ? Pkg.develop(path="~/my_path_repo/FEMTISE.jl") : nothing

Now we install package (if it is nesseary) and use specific packages to analyse output data:

install_pkg = true
if install_pkg
    Pkg.add("Plots")
    Pkg.add("PlotlyJS")
end
using FEMTISE;
using Plots;

Read output data

All the information that we need to specify is where we find input file then using specific functions we can collect output data

path_input_file_name="~/my_directory_path/QHO2D/input.dat"
simulation_info, output_data = collect_result_data(true,path_input_file_name)

Plotting figures

Defining functions to plot data we have:

"""
    plot_eigenvalues(id,results;<keyword arguments>)

# Aim
- Plot the eigenvalues of the Hamiltonian operator.
The eigenvalues are obtained from the diagonalization of the Hamiltonian operator.
The keyword arguments are used to set the title, xlabel, ylabel, and legend of the plot.

# Arguments
- `id`: InputData or InputData1D or InputData2D object.
- `results`: Results object.
- `keyword arguments`:
    - `set_title::String`: Title of the plot.
    - `set_xlabel::String`: Label of the x-axis.
    - `set_ylabel::String`: Label of the y-axis.
    - `set_legend::Symbol`: Position of the legend.
"""
function plot_eigenvalues(id,results;
    set_title::String="",
    set_xlabel::String="Energy level (n)",set_ylabel::String="Eigen-energies (ϵn [au])",set_legend::Symbol=:bottomright)
    if id.analysis_param == false
        plotlyjs()
        figure = scatter(real(results.ϵ),title=set_title,xlabel=set_xlabel,ylabel=set_ylabel,legend=set_legend)
    else
        println("PLOT ERROR.")
        println("Check attributes, you are using the wrong function method. Analysis parameter is activated.")
        figure = nothing
    end
    return figure
end

"""
    density2D(x,y,phi_n)

# Aim
- Calculate the probability density of the eigenstates in 2D.

# Arguments
- `x::Array{Float64,1}`: Array of x-coordinates.
- `y::Array{Float64,1}`: Array of y-coordinates.
- `phi_n::Array{Complex{Float64},1}`: Array of eigenstates.
"""
function density2D(x,y,phi_n)
    density=zeros(length(y),length(x))
    for i in eachindex(y)
        for j in eachindex(x)
            index=(j-1)*length(y)+i
            density[i,j]=real.(conj.(phi_n[index]).*phi_n[index])
        end
    end
    return density
end

"""
    plot_eigenstates(id,results,index_nev;<keyword arguments>)

# Aim
- Plot the eigenstates of the Hamiltonian operator.
The eigenstates are obtained from the diagonalization of the Hamiltonian operator.
The eigenstates are plotted for the energy level specified by the index_nev variable.
The keyword arguments are used to set the color map of the plot (only for 2D plot).

# Arguments
- `id`: InputData or InputData1D or InputData2D object.
- `results`: Results object.
- `index_nev::Int`: Energy level to plot.
- `keyword arguments`:
    - `mapcolor::Symbol=:rainbow1`: Color map of the plot (only for 2D plot).
"""
function plot_eigenstates(id,results,index_nev::Int;mapcolor::Symbol=:rainbow1)
    if id.analysis_param == false
        if id.params.dimension == "1D"
            plotlyjs();
            if ((typeof(id) <: InputData) || (typeof(id) <: InputData1D && id.
            output_format_type == ("bin","eigen")))
                rho = real.(conj.(results.ϕ[:,index_nev]).*(results.ϕ[:,index_nev]))
            elseif (typeof(id) <: InputData1D && id.output_format_type in [("jld2","eigen"),
            ("jld2","all")])
                rho = real.(conj.(results.ϕ[index_nev].(results.pts)).*(results.ϕ
                [index_nev].(results.pts)))
            end
            figure = plot(results.r,rho,lw=2,lc=:black,label="")
            figure = scatter!(results.r,rho,label="n=$(index_nev)",lw=0.1)
            figure = plot!(xlabel="Coordinate (x [au])",ylabel="Probability density (ρn(x))
            ",ticks = :native)
        elseif id.params.dimension == "2D"
            gr();
            if ((typeof(id) <: InputData) || (typeof(id) <: InputData2D && id.
            output_format_type == ("bin","eigen")))
                if id.params.nx==id.params.ny
                    rho = density2D(results.r[:,1],results.r[:,2],results.ϕ[:,index_nev])
                    figure1 = contour(results.r[:,1],results.r[:,2],rho,levels=10,
                    color=mapcolor, fill=true,lw=0)
                else
                    rho = density2D(results.r[1:id.params.nx,1],results.r[1:id.params.ny,2],
                    results.ϕ[:,index_nev])
                    figure1 = contour(results.r[1:id.params.nx,1],results.r[1:id.params.ny,
                    2],rho, levels=10, color=mapcolor, fill=true,lw=0)
                end
            elseif (typeof(id) <: InputData2D && id.output_format_type in [("jld2","eigen"),
            ("jld2","all")])
                rho = density2D(results.r[1],results.r[2],results.ϕ[index_nev].(results.
                pts))
                figure1 = contour(results.r[1],results.r[2],rho,levels=10, color=mapcolor,
                fill=true,lw=0)
            end
            figure1 = plot(figure1,title="Probability density (ρ$(index_nev)(x))",
            xlabel="Coordinate (x [au])", ylabel="Coordinate (y [au])")

            if id.reduced_density
                plotlyjs()
                if ((typeof(id) <: InputData) || (typeof(id) <: InputData1D && id.
                output_format_type == ("bin","eigen")))
                    if id.params.nx==id.params.ny
                        figure2=plot(results.r[:,1],results.rhoDOF1[:,index_nev],label="ρn
                        (x)")
                        figure2=plot!(results.r[:,2],results.rhoDOF2[:,index_nev],label="ρn
                        (y)")
                    else
                        figure2=plot(results.r[1:id.params.nx,1],results.rhoDOF1[:,
                        index_nev],label="ρn(x)")
                        figure2=plot!(results.r[1:id.params.ny,2],results.rhoDOF2[:,
                        index_nev],label="ρn(y)")
                    end
                elseif (typeof(id) <: InputData2D && id.output_format_type in [("jld2",
                "eigen"),("jld2","all")])
                    figure2 = plot(results.r[1],results.rhoDOF1[:,index_nev],label="ρn(x)")
                    figure2 = plot!(results.r[2],results.rhoDOF2[:,index_nev],label="ρn(y)")
                end
                figure2=plot!(title="Reduced probability density for level n=$(index_nev)")
                figure2=plot!(xlabel="Coordinate (x or y [au])",ylabel="",ticks = :native)

                figure = plot(figure1,figure2,layout=2)
            else
                figure = figure1
            end
        end
    else
        println("PLOT ERROR.")
        println("You can not plot eigenstate with activated analysis params.")
        figure = nothing
    end
    return figure
end

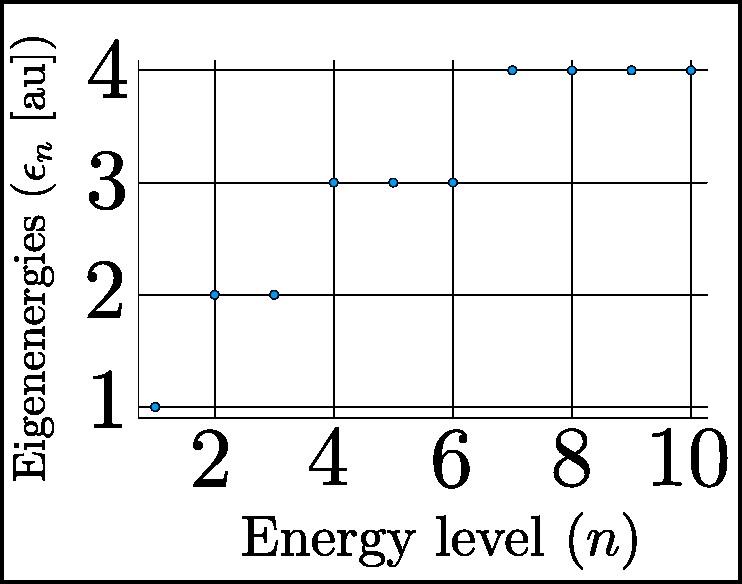

Now we can plot eigenenergies:

fig1 = plot_eigenvalues(simulation_info, output_data)
display(fig1)

figure

Also, we can export figures as *pdf format using

savefig(fig1,"./eigen_energies.pdf")

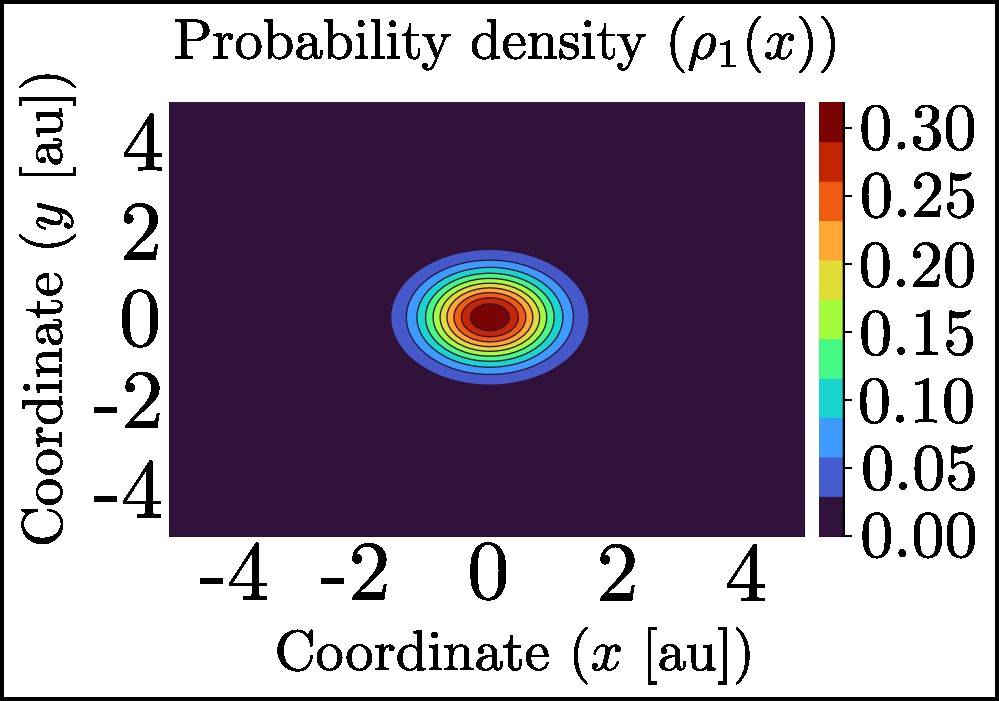

and eigenfunctions:

eigenstate_to_show=1
fig2=plot_eigenstates(simulation_info, output_data,eigenstate_to_show;mapcolor=:turbo)
display(fig2)

figure

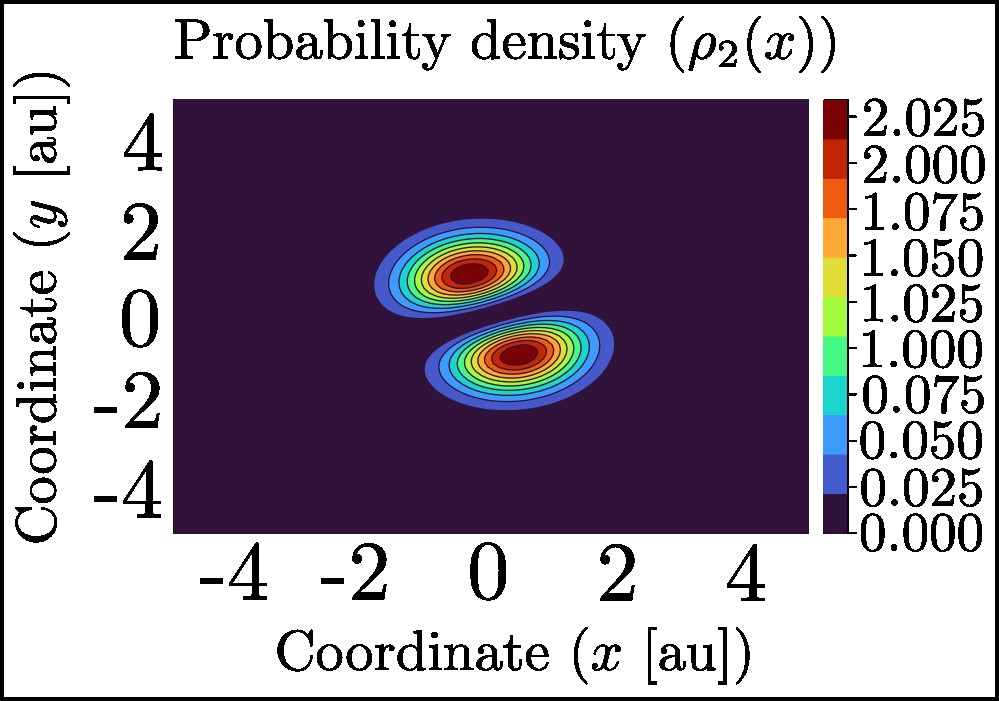

eigenstate_to_show=2
fig2=plot_eigenstates(simulation_info, output_data,eigenstate_to_show;mapcolor=:turbo)
display(fig2)

figure
