Tutorial To Simulate Coulomb 2D Interaction potential (Helium atom model)

Create simulation directory

First of all we need to create a specific directory to save this specific simulation results

@prompt:~$ mkdir ~/my_directory_path/C2D
@prompt:~$ cd ~/my_directory_path/C2D

Create function potential

We need to create a specific function potential for coulomb potential interaction as following:

@prompt:~/my_directory_path/C2D$ vi adhoc_potential_function.jl

Inside adhoc_potential_function write the following:

distance(DOF1,DOF2)=abs(DOF2-DOF1)

effective_interaction(DOF) = exp(DOF^2)*erfc(DOF)
asymptotical_interaction(DOF) = 1.0/(sqrt(π)*DOF)

function avoided_divergence(DOF,b)
    DOF > 25.7 ? func=asymptotical_interaction(DOF+b) : func=effective_interaction(DOF+b)
    return func
end

function reduced_confinement_function(DOF1,DOF2,confinement_length,Yukawa_length,
atomic_number)
    a=atomic_number*π*sqrt(π)*0.5*(1.0/confinement_length);
    b=confinement_length*0.5*(1.0/abs(Yukawa_length));
    coordinate=distance(DOF1,DOF2)*(1.0/confinement_length);
    return a*exp((-2.0*coordinate+b)*b)*avoided_divergence(coordinate,b)
end

export effective_Yukawa_potential_2e
"""
    effective_Yukawa_potential_2e(x,params)

# Aim:
    This function calculates the effective Yukawa potential between two electrons in a 1D
    system.
    The potential is calculated using the reduced confinement function and the avoided
    divergence function.

# Arguments
    x::Array{Float64,1} : The position of the two electrons in 1D.
    params::Tuple : A tuple containing the parameters of the potential.
        params[1]::Float64 : The confinement length of the potential.
        params[2]::Float64 : The Yukawa length of the potential.
        params[3]::Float64 : The position of the nuclei.
        params[4]::Float64 : The atomic number of the nuclei.
        params[5]::Float64 : The switch factor of the potential.

# Returns
    Float64 : The value of the effective Yukawa potential at the position x.
"""
function effective_Yukawa_potential_2e(x,params::Tuple)
    confinement_length,Yukawa_length,nuclei_coord,atomic_number,switch_factor=params;
    return (switch_factor*(reduced_confinement_function(x[1],x[2],confinement_length,
    Yukawa_length,1.0)
    -reduced_confinement_function(x[1],nuclei_coord,confinement_length,Yukawa_length,
    atomic_number)
    -reduced_confinement_function(nuclei_coord,x[2],confinement_length,Yukawa_length,
    atomic_number)))
end

Input file

We need to create an input file to simulate using default solver function inside FEMTISE package

@prompt:~/my_directory_path/C2D$ vi input.dat

Inside input.dat we need to write the following.

full_path_name              = ~/my_directory_path/C2D/name_output_file
dom_type                    = s
nev                         = 50
dimension                   = 2D
sigma                       = -10.0
adhoc_file_name             = ~/my_directory_path/C2D/adhoc_potential_function
potential_function_name     = effective_Yukawa_potential_2e
params_potential_types      = f f f f f
params_potential            = 1.0 100.0 0.0 2 1.0
analysis_param              = 5 -0.01 1.0 0.01
output_format_type          = jld2 eigen
## ONLY FOR 1D EIGENPROBLEMS
L                           =
Δx                          =
## ONLY FOR 2D EIGENPROBLEMS
Lx                          = 10
Ly                          = 10
nx                          = 100
ny                          = 100
different_masses            = false
reduced_density             = false

Note that we are setting analysis_param keyword. The parameter that we are going to change is the number 5, from 0.01 value to 1.0 value with step 0.01 value.

Run script

Create Julia code as

@prompt:~/my_directory_path/C2D$ vi run.jl

Inside run.jl we need to write the following.

begin
    using Pkg
    Pkg.activate("../")
    develop_package = true; develop_package ? Pkg.develop(path="~/my_path_repo/FEMTISE.jl")
    : nothing
    Pkg.instantiate()
    using FEMTISE;
    run_default_eigen_problem(set_type_potential("~/my_directory_path/C2D/input.dat"))
end

After this we can run the simulation using Julia compiler (for example: using multithread running with four threads)

@prompt:~/my_directory_path/C2D$ julia -t 4 run.jl

Analysis

After running we obtain an output data file in jld2 format called name_output_file_eigen_data.jld2.

Then using Jupyter Notebook (by intermediate Visual Studio Code) we can analyse output file so:

@prompt:~/my_directory_path/C2D$ code C2D.ipynb

Inside C2D.ipynb we need to write the following:

Environment

Activate Julia environment

using Pkg
Pkg.activate("./")
Pkg.instantiate()

Is necessary to mark FEMTISE package as developed package using specific path repository:

develop_package = true; develop_package ? Pkg.develop(path="~/my_path_repo/FEMTISE.jl") : nothing

Now we install package (if is nesseary) and use specific packages to analyse output data:

install_pkg = true
if install_pkg
    Pkg.add("Plots")
    Pkg.add("PlotlyJS")
end
using FEMTISE;
using Plots;

Read output data

All the information that we need to specify is where we find input file then using specific functions we can collect output data

path_input_file_name="~/my_directory_path/C2D/input.dat"
simulation_info, output_data = collect_result_data(true,path_input_file_name)

Plotting figures

Building functions to plot figures we have:

"""
    plot_eigenvalues(id,results,range_to_show;<keyword arguments>)

# Aim
- Plot the eigenvalues of the Hamiltonian operator.
The eigenvalues are plotted as a function of the parameter λ.
The eigenvalues are obtained from the diagonalization of the Hamiltonian operator.
The eigenvalues are plotted for the range of energy levels specified by the range_to_show
variable.
The keyword arguments are used to set the title, xlabel, ylabel, and legend of the plot.

# Arguments
- `id`: InputData or InputData1D or InputData2D object.
- `results`: Results object.
- `range_to_show::StepRange{Int, Int}`: Range of energy levels to plot.
- `keyword arguments`:
    - `set_title::String`: Title of the plot.
    - `set_xlabel::String`: Label of the x-axis.
    - `set_ylabel::String`: Label of the y-axis.
    - `set_legend::Symbol`: Position of the legend.
"""
function plot_eigenvalues(id,results,range_to_show::StepRange{Int, Int};show_label=true)
    if id.analysis_param == false
        println("PLOT ERROR.")
        println("Check attributes, you are using the wrong function method. Analysis
        parameter is not activated.")
        figure = nothing
    else
        plotlyjs()
        figure = plot(xlabel="Parameter λ",ylabel="Eigen-energies (ϵn(λ) [au])",ticks =
        :native)
        for i in range_to_show
            if show_label
                figure = scatter!(real.(results.λvector),real(results.ϵ_matrix[i,:]),
                label="n=$(i)",legend=:top)
            else
                figure = scatter!(real.(results.λvector),real(results.ϵ_matrix[i,:]),
                label="")
            end
            figure = plot!(real.(results.λvector),real(results.ϵ_matrix[i,:]),label="")
        end
    end
    return figure
end

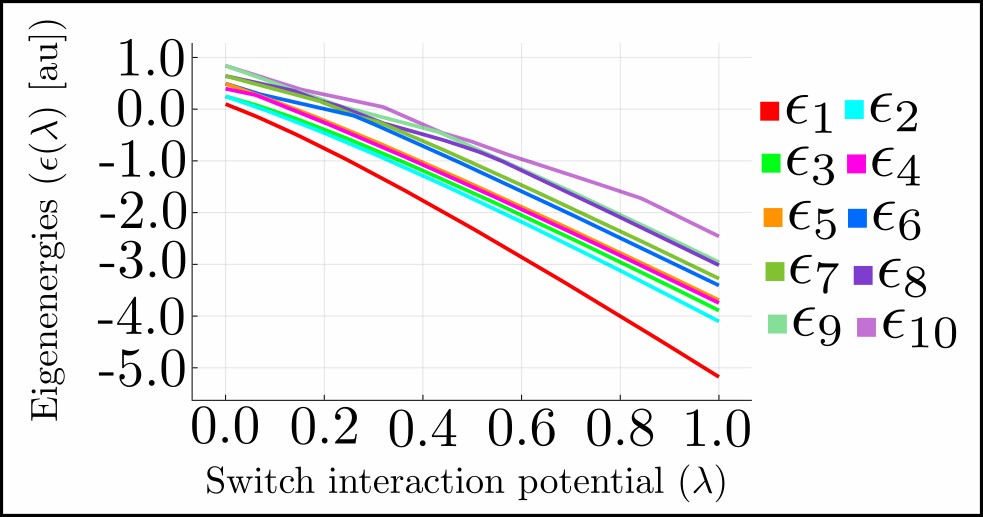

Now we can plot eigenenergies:

fig1=plot_eigenvalues(simulation_info,output_data,1:1:10;show_label=true)
display(fig1)

figure

Also, we can export figures as *pdf format using

savefig(fig1,"./eigen_energies_vs_parameter.pdf")

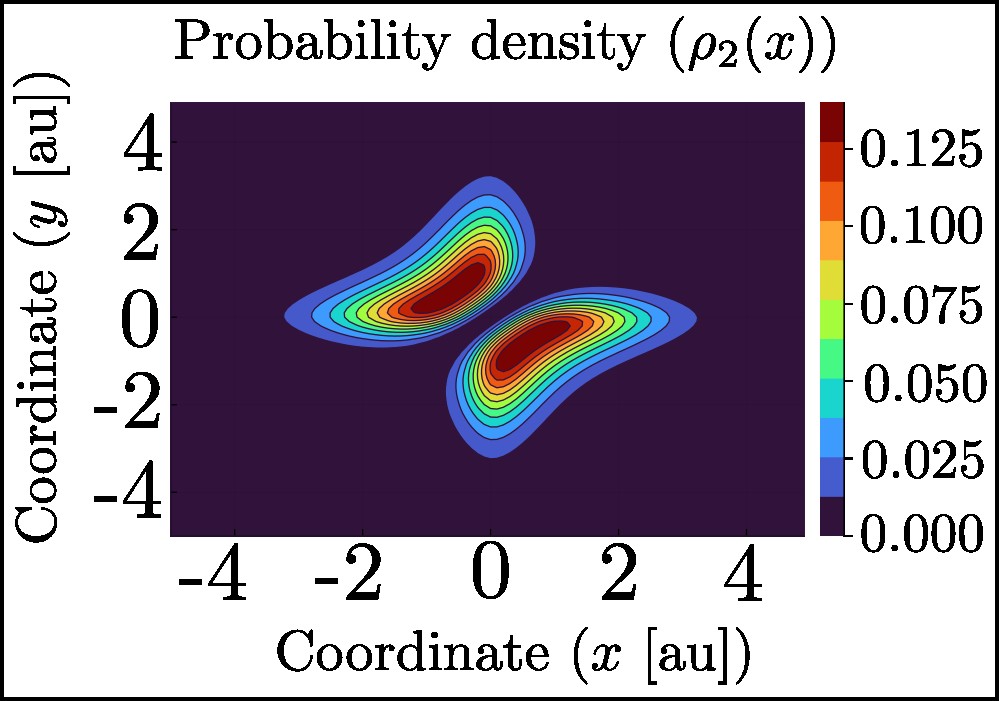

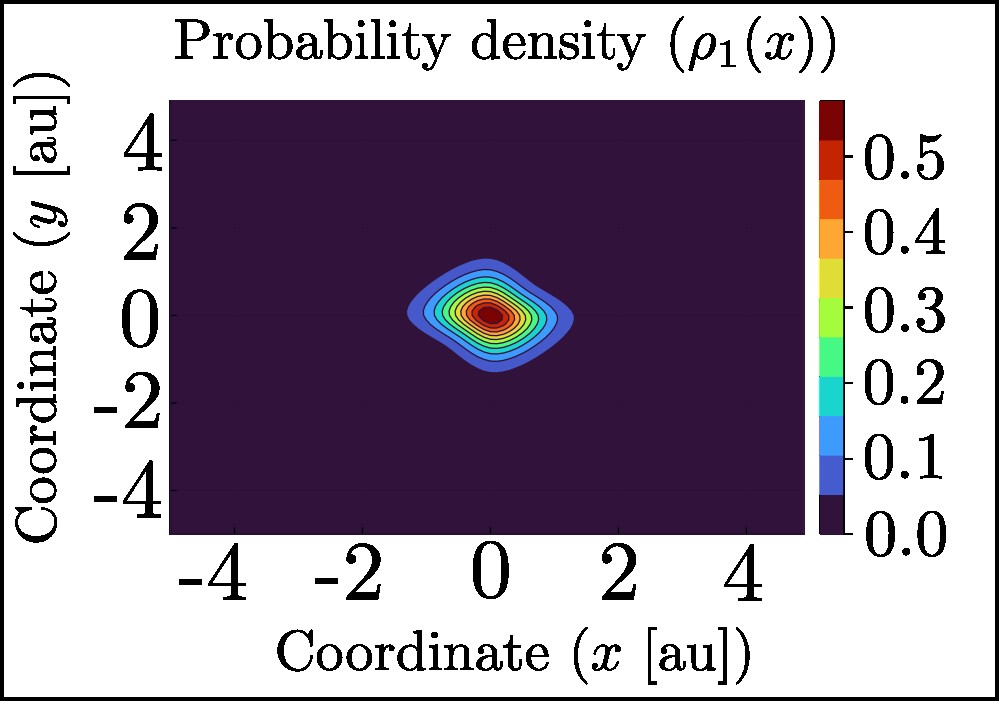

Following the same logic we can simulate for this coulombic potential and the eigenstates for the first two energy levels are:

figure

figure
